Elbow for JAWA 50 carburetor for use Stadion S11
STOCK
Full specifications

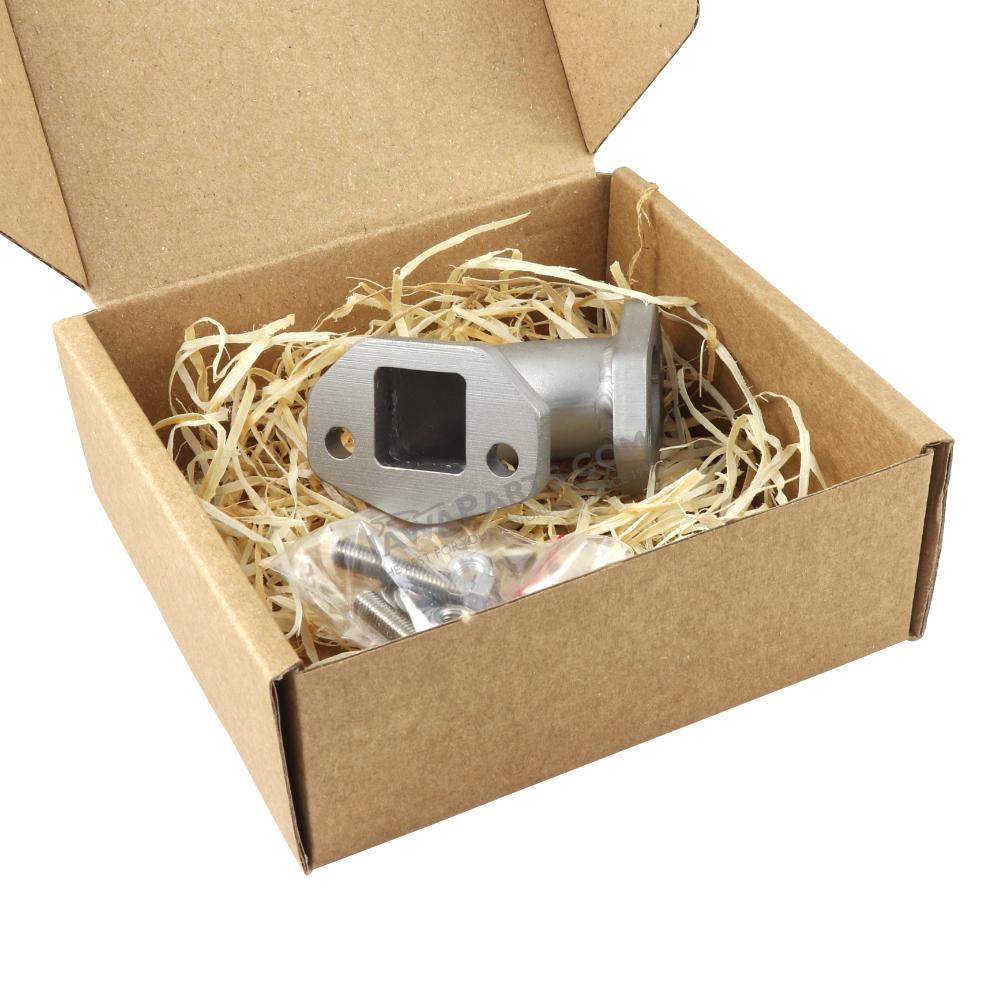

Elbow for JAWA 50 carburetor for use Stadion S11
Manufacturer description:
Tuning elbow intake at Stadium S11 for carburetor from Jawa 50 pioneer. The elbow is designed for Jikov 2917PSb carburetors from the pioneer. This is a popular modification for better use of the engine potential when modifying the cylinder.
The suction elbow is made as short as possible. Inner diameter 18mm, material sandblasted stainless steel.
The carburetor is rotated so that it does not bind the pedals with the filter.
The elbow is also welded from the inside and shaped into a square so that the suction mixture has a smooth course and does not hit anywhere.
Due to the shortest possible suction length, there is little space for a classic screw - it will not fit. Mounting the carburetor to the flange is solved by a helix, which is tightened from both ends with a lowered nut. All fasteners needed for assembly are included in the package. Installation is easy and only takes a few minutes.
