Contactless ignition 12V VAPE, TUNING (MZA), complete - Simson S50, S51, S70

Full specifications

Set of contactless ignition 12V VAPE, TUNING (MZA), complete - Simson S50, S51, S70

Note: This is the contactless ignition VAPE A70S3 12V-system with 100W and 16000 rpm. The package includes installation instructions with pictures and connection diagram.This is an original spare part.

Instructions are only available in German language. This product is not eligible for a registered discount.

The set includes:
Carrier plate with regulator, indicator and adapter cable
Holder with module of ignition VAPE Z71 and earthing
Stator VAPE A70S-3
Rotor VAPE A70R-3-C
Spark plug connector
Ignition cable
Cable grommet
Hole cover
Connector
Cable insulation
M5 x 12 cylinder bolt
Spring washers B51 Hex nut M5 (2pcs)
Self-tapping bolt B4,2

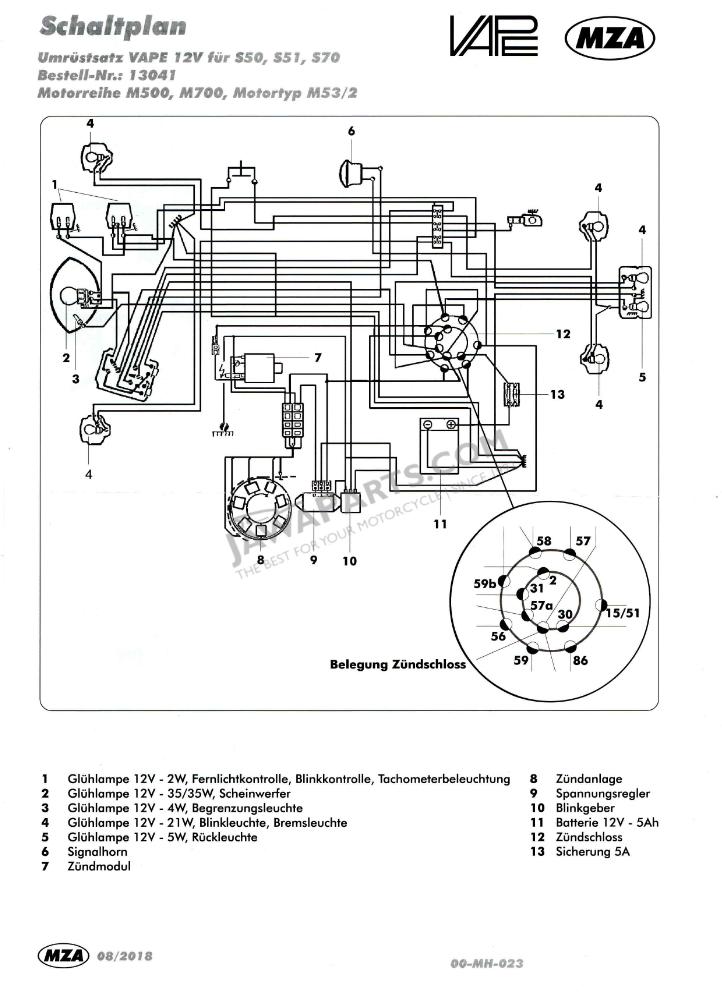

Operating Instructions (DE) + wiring diagram

Can be used for:

Simson S50, S51, S70

The warranty does not apply to defects caused by unprofessional commissioning, improper installation, incorrect handling of the goods, improper maintenance or improper handling.

The requirement to claim the claim procedure is to provide a proof of professional assembly.

The product of the MZA, which is the exclusive holder of the SIMSON brand.

For download

Instructions (DE)
