Charging coil 12V 21W (MZA) - Simson

STOCK

Product no.:	4939
Manufacturer:	DE (MZA / PLITZ)
Performance:	12V 21W
Weight:	0,135 kg
Our Price without Tax :	17.06 EUR
Our Price including Tax (21 %):	20.64 EUR
into the basket: pcs

Full specifications

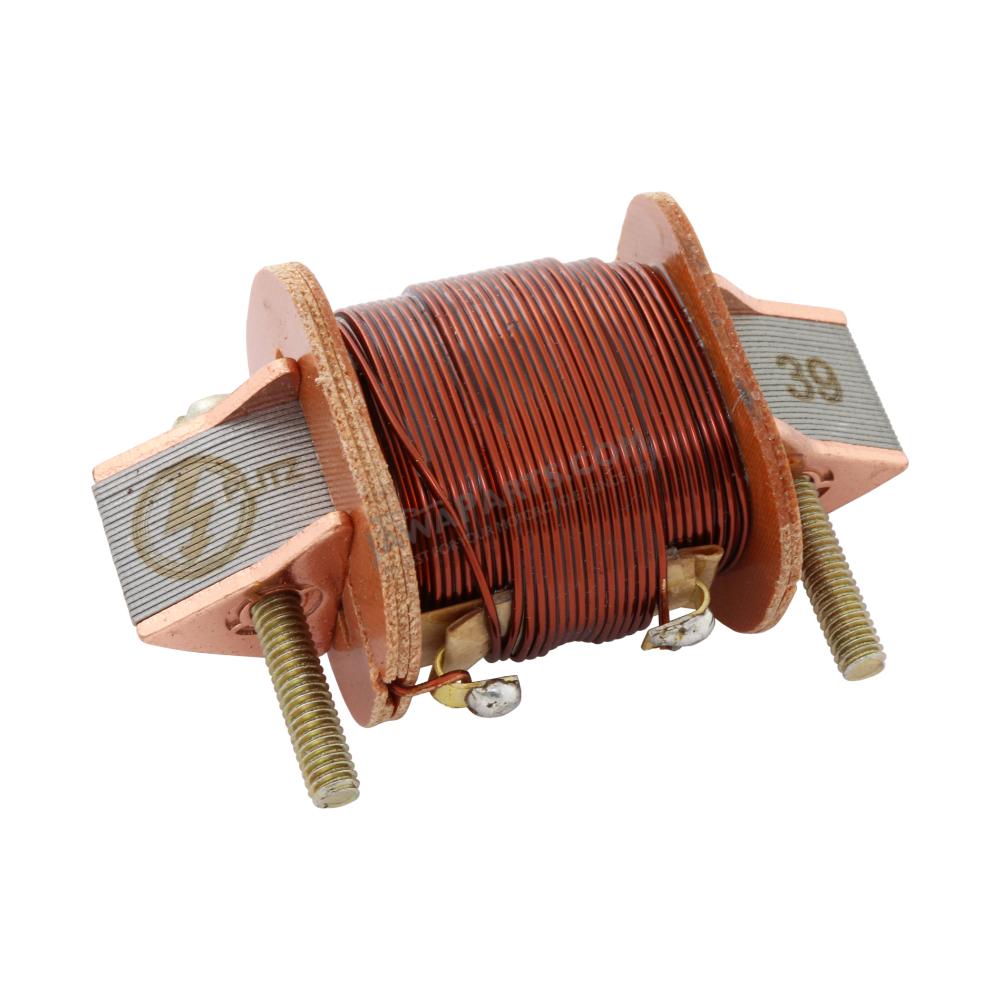

Charging coil 12V 21W (MZA) - Simson

Note: The light coil is designed for (brake light) with 21W bulb. The light coil is designed for the ignition circuit breaker and is located directly on the engine motherboard. The light coil generates power for the brake light and battery charging system. Light coil is only intended for use with a rectifier or AC voltage regulator.

Mounting Screw Thread: M4
Distance between mounting bolts (between bolt centers): 40 mm
Coil height (winding): 26 mm
For 12V installation: 12V battery and 12V 21W bulb
Coil marking by manufacturer: 39

Can be used:

Simson S51, S53, S70, S83, SR50, SR80

The product of the MZA, which is the exclusive holder of the SIMSON brand.
