Contactless ignition VAPE (SZ14-1) 1-Cylinders / 6V - JAWA, ČZ
STOCK
Full specifications
Contactless ignition VAPE (SZ14-1) 1-Cylinders / 6V - JAWA, ČZ
Note.: Connection scheme is available only in czech languague.
| Can be used for: | |
| ČZ | ČZ 125 type 453 |
| ČZ | ČZ 125 type 473 - Sport |
| ČZ | ČZ 125 type 476 |
| ČZ | ČZ 125 type 488 |
| ČZ | ČZ 175 skutr type 501 - two exhausts |
| ČZ | ČZ 175 type 450 |
| ČZ | ČZ 175 type 470 - Sport |
| ČZ | ČZ 175 type 477 |
| ČZ | ČZ 175 type 487 |
| ČZ | ČZ 250 type 455 |
| ČZ | ČZ 250 type 475 - Sport |
| JAWA - ČZ | Jawa - ČZ 125 type 355 |
| JAWA - ČZ | Jawa - ČZ 175 type 356 |
| JAWA | 250 type 11 (Pérák) |
| JAWA | 250 type 353 (Kývačka) |
| JAWA | 250 type 559 (Panelka) |
| JAWA | 250 type 590 (Sport) |
| Velorex | Velorex 175 - three wheels |
6V source and ignition set, for one-cylinder, two-stroke, right-handed motors.
Power source 100W.
Output on 1 spark plugs.
Usage for Jawa 250 Pérák, Jawa 250/353, 559,592, ČZ 175/356, 450, 470, 477, 487, ČZ 250/455
The set does not include a charging lamp output.

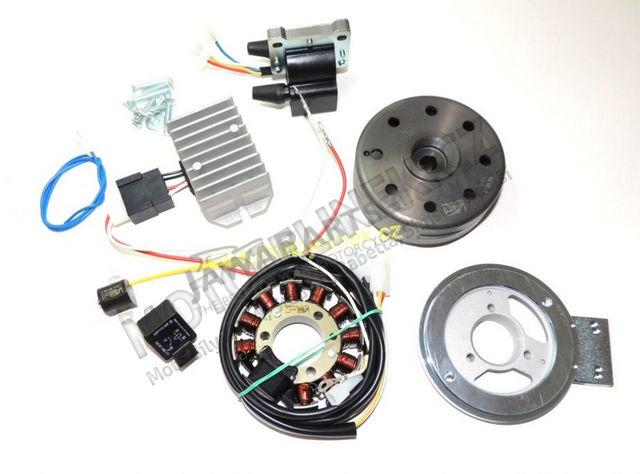

Set includes:
A-A69S-2 - Stator
A-A69R-1 - Rotor
A-S01T - Sensor
A-R64 - Controller
A-Z67-1V - Ignition Coil
A-A69N-2 - Stator carrier
The warranty does not apply to defects caused by unprofessional commissioning, improper installation, incorrect handling of the goods, improper maintenance or improper handling.
The requirement to claim the claim procedure is to provide a proof of professional assembly.
This product is not eligible for a registered discount.
Connection scheme
